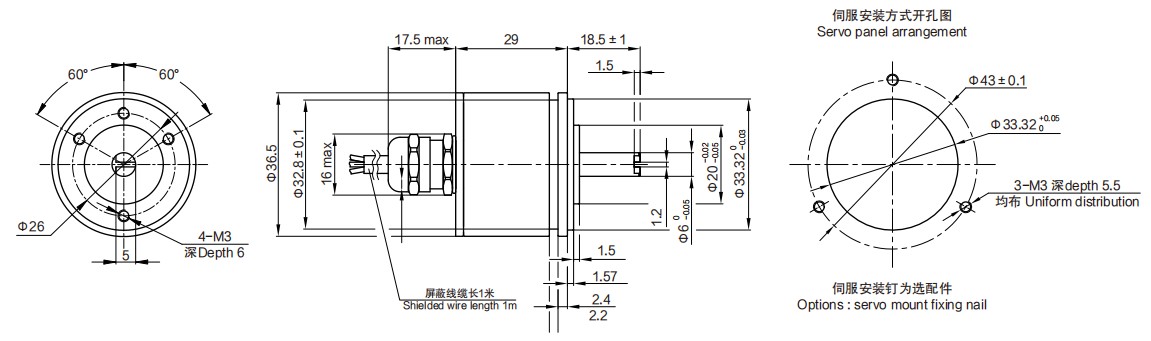

Mechanical angle

360º(Endless)

Protection degree

IP67

Operating torque

<1mN·m

Life expectancy

100,000,000

Mass

Approx.100g

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Operating temperature range

-40℃～+85℃

Storage temperature range

-40℃～+85℃

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

10V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

Standard model

R36 0505 W360（For more input voltage/output signal such as 2410、2405、2442, please check our catalog.）

Input voltage

5V±10%

Output signal

0～100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

0505

5V±10% / 0～100%Vcc

2410

15～30V / 0～10V

2405

9～30V / 0～5V

2442

15～30V / 4～20mA

Special analog signals

1010：10V applied, 0～10V output, 0305：3.3V applied, 0～5V output, PWM

Other output signals

Incremental, SSI, SPI, RS485, RS422, CAN, USB

Special shaft

Special length of shaft, special diameter or special machining on shaft (like shaft slotted、flatted etc.)

Special mechanical angle

With stopper (Rotating angle becomes 345°, or 270°, 180°, 90° and other angles can be customized)

Special torque

Low torque <0.5mN·m or high torque <30mN·m
