Dear customers, today we would like to introduce you a new member of SIBO signal communication module family -- SBS90M signal acquisition and communication module.

01 Crafted by SIBO

At present, there are various kinds of modules with communication interfaces (RS232, RS485, RS422, CAN, USB) on the market. There are wide variances in price, the functions are mostly just to achieve interface conversion, and the performances can only meet an experiment or test at best. It is really hard to put them into products and apply them into industrial occasions.

In view of the characteristics and application of the sensor field, SIBO developed the SBS90M series acquisition and communication module. Its "acquisition" lies in that the communication module is not the conversion of communication interfaces, but the aggregation of sensor signals. Its "reading" is reflected in the flexible realization of digital output of sensor signals by using multi interfaces and multi protocols. The "acquisition" and "reading" of various signals are designed to solve the industrial level demand of sensor type multi signal input (Analog, Digital, Switch), multi interfaces (RS232, RS485, RS422, CAN, USB single or combined) and multi protocols (SENTOP, Modbus, CANbus, CANopen, USB_HID and Customized Protocol) output.

Specifications:

◆ Power Supply: Voltage, Current, Interface

◆ Dimensions: Length, Width and Height

◆ Input: Analog, Switch

◆ Output: Single output, Dual output, Triple output

◆ Communication protocol: SENTOP/Modbus/customer customized protocols; HID/customer customized protocols; CANopen/CANbus/customer customized protocols.

'Acquisition' out of the ordinary

How to acquire

SBS90M signal communication module can acquire 6 analog signals and 10 switch signals or can acquire and combine into 3D joystick signal. It can not only meet the use of single signal acquisition, but also can meet the use of integrated combined signals.

Acquirable signals

6 analog signals of 0~5V, 10 switch signals. It can be combined with various types of traditional potentiometers, contactless potentiometers, encoders, joysticks, pedals and hand wheels, such as two pieces of 3-axis joysticks, 3 pieces of 2-axis joysticks, multi analog outputs of hand wheels and multi analog outputs of encoders.

'Reading' with originality

How to 'read' ?

According to your requirements, multi interfaces combined with multi protocols can freely control communications at any time.

◆ Modbus、CANopen——Meet standard communication；

◆ SENTOP——Active upload/changing heartbeat upload;

◆ Customization - meet personalized needs

'Readable' signals

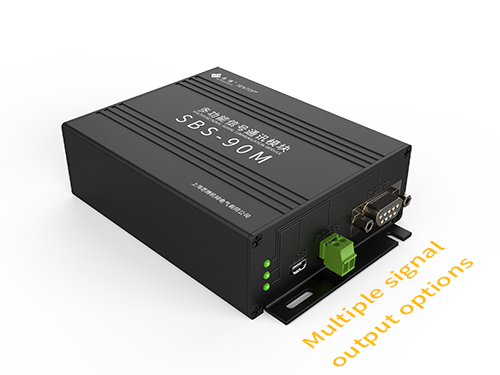

Single/multi output interfaces (RS232, RS485, RS422, CAN, USB) can output the acquired input signals simultaneously in "single" or combined "multi" mode, which not only meets the needs of single independent output, but also meet the needs of signal combination.

'Readable' communication protocol

Different from that interfaces can realize one or more communication protocols, RS232, RS485 and RS422 can realize SENTOP/Modbus/customer customized protocols; CAN interface can realize CANopen/CANbus/customer customized protocols; USB can realize HID/customer customized protocols, to complete the communication with computers.

SBS90M signal communication module, the concept of 'Acquisition' out of the ordinary and 'Reading' with ingenuity, would help you succeed!

If you are interested in our products and would like to further know more, kindly please leave your message on our official accounts: 'SBS90M' to get the product selection table.

Welcome to use WeChat to scan the QR code, add exclusive customer service for Sibo, and obtain more information.
