Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

R22H
R22H

R22H

1-turn Contactless Magnetic POT.

瀏覽量: Tiempo: 2023-01-09

    Características:

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Without shaft

  • Screw mount

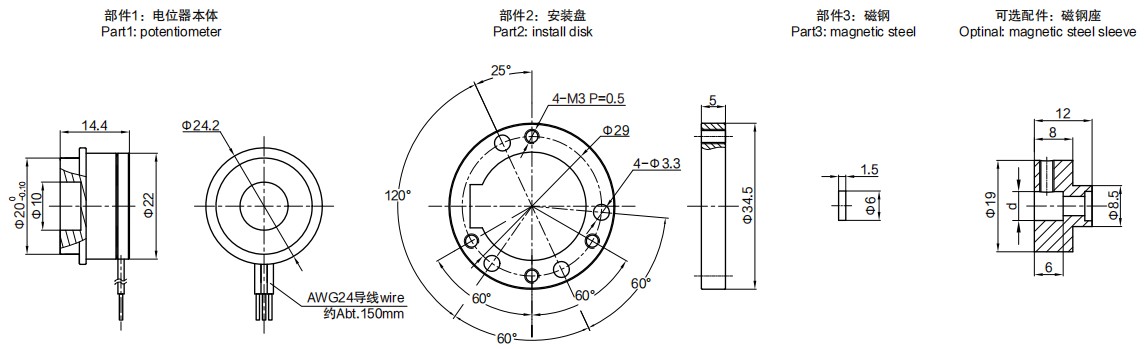

Dimensión


Parámetro

General Mechanical Specifications

Protection degree

IP67

Mass

Approx.25g

Housing material

Anodized aluminium alloy

Magnetic steel sleeve(Optional)

Brass

Environmental Specifications

Operating temperature range

-40℃~+85℃

Storage temperature range

-40℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

10V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R22H 0505 W360(For more input voltage/output signal such as 2410、2405、2442, please check our catalog.)

Input voltage

5V±10%

Output signal

0~100%Vcc

Current consumption (no-load)

<16mA

Output deviation of both ends

<1%·VCC

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Special input and output

Available for other input and output, such as 1010: 10V input, 0-10V output, 0305: 3.3V input, 0-5V output, etc.

Other output signals

Available for incremental、 PWM、SER、SSI、SPI signal.
