Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

R58
R58
R58
R58

R58

1-turn Contactless Magnetic POT.

瀏覽量: Tiempo: 2023-02-20

    Características:

  • Magnetic rotary sensor (Hall effect)

  • High protection degree

  • Heavy-duty

  • Antimagnetic interference

  • Shielded cable

  • Reverse connect protection

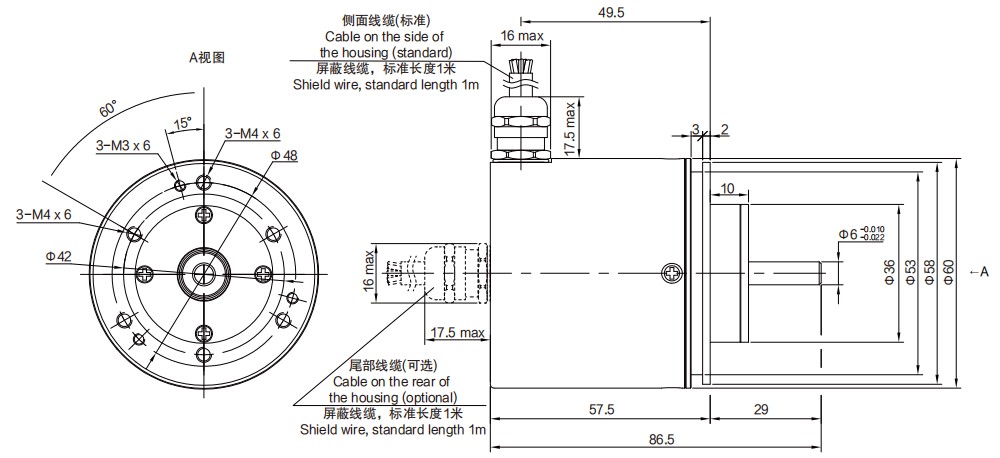

Dimensión


Parámetro

General Mechanical Specifications

Mechanical angle

360º(Endless)

Protection degree

IP67

Operating torque

≤50mN·m

Max.speed

100,000,000

Life expectancy

Approx.330g

Mass

Aluminium alloy

Housing material

Stainless steel

Shaft material

Axial 40N,Radial 80N

Shaft load

φ6/ φ8/ φ10/ φ12

Shaft diameter

Environmental Specifications

Operating temperature range

-30℃~+85℃

Storage temperature range

-30℃~+85℃

ESD durability

Contact discharge ±8KV,Aerial discharge ±15KV,EN61000-4-2:2009

EMS durability

100V/m (80MHz~1GHz,1KHz80% Amplitude modulation),EN61000-4-3:2006+A1:2010

General Electrical Specifications

Standard model

R58 2410 W360(For more input voltage/output signal such as 0505、2405、2442, please check our catalog.)

Input voltage

15~30V

Output signal

0~10V

Current consumption (no-load)

<25mA

Output deviation of both ends

<50mV

Load resistance

>100KΩ

Effective electrical angle

360º

Independent linearity tolerance

±0.3%

Resolution

4096 (12 Bit)

Update rate

0.3ms

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Input voltage/output signal

0505

5V±10% / 0~100%Vcc

2410

15~30V / 0~10V

2405

9~30V / 0~5V

2442

15~30V / 4~20mA

Special Specifications Available

Special analog signals

1010:10V applied, 0~10V output, 0305:3.3V applied, 0~5V output, PWM

Other output signals

Incremental, SSI, SPI, RS485, RS422, CAN, USB

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、fatted etc.) or blind hole
