Producto Producto

Producto

Sibo se ha enfocado en potenciómetros y sensores durante 30 años.

EI36B-F1
EI36B-F1

EI36B-F1

Incremental Encoders

瀏覽量： Tiempo: 2023-10-16

    Características：

  • Magnetic encoders

  • Any PPR up to 4096 available

  • High protection degree

  • With one couple of precision ball bearings

  • Flexible flange mount

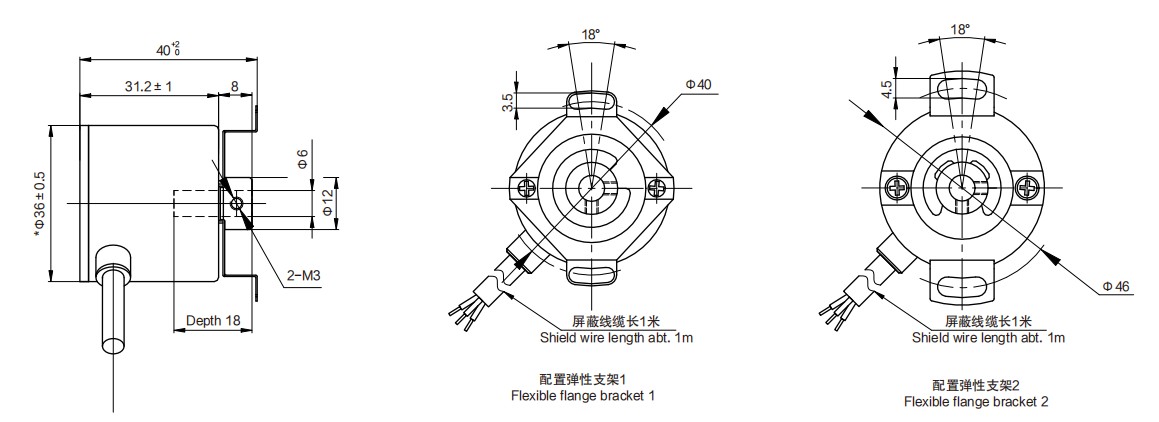

Dimensión


Parámetro

General Mechanical Specifications

Protection degree

IP67

Operating torque

<1mN·m

Max.speed

6000rpm

Life expectancy

100,000,000

Mass

Approx.115g

Housing material

Aluminium alloy

Shaft material

Brass

Environmental Specifications

Operating temperature range

-40℃～+85℃

Storage temperature range

-40℃～+85℃

General Electrical Specifications

Standard model

EI36B-F1-W4096-P

Applied voltage

5V-30V

Output form

Push-pull output

Number of output pulse

4096 ppr

Output propagation delay

<2μs

Current consumption

<20mA

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special Specifications Available

Special shaft

Special length of shaft、special diameter or special machining on shaft (shaft slotted, fatted, etc.)

Special output

Differential signal and open-collector

Other output characteristics

Anolog signals, Bus signals, etc.
