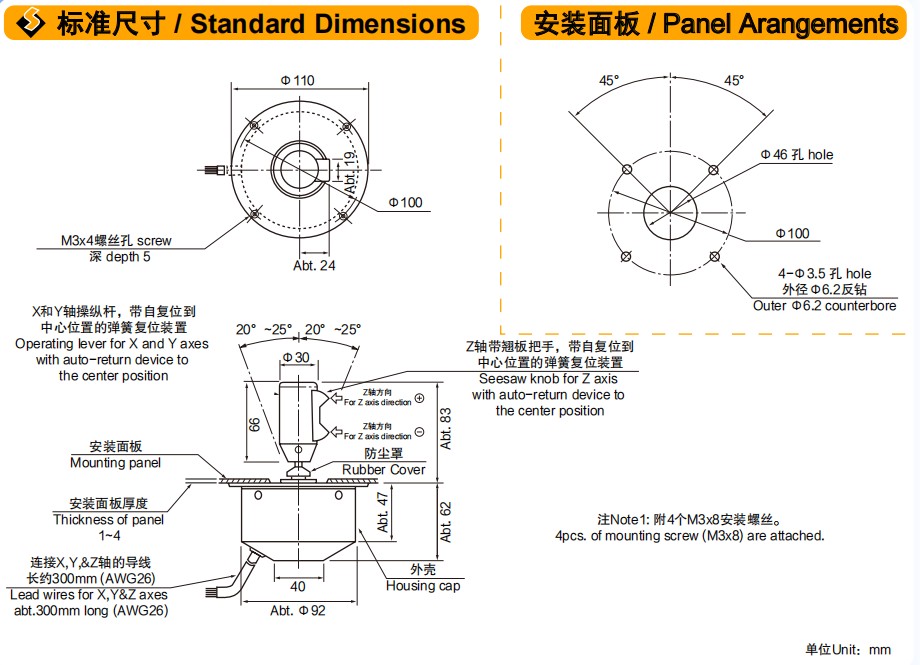

Controlling range of operating lever

2-dimensional coordinate type : Omni-directionally approx. ±20° ～ ±25° operation from center position, 3-dimensional coordinate type : Approx. ±15°～±19° operation from the center position of the seesaw knob, in addition to the controlling range of 2-dimensional coordinate type.

Operating force

Standard spring return device:Automatically return to center.

X, Y directions

Approx. 0.8～2.3N (80～230gf.) [with 2 springs(with directive feeling)as standard version]

Z direction

Approx. 24～30mN·m (240～300gf·cm)

Operating temperature range

-20℃~+65℃

Vibration

10~55HZ，98m/s2

Shock

294m/s2

Life expectancy

Approx. 5,000,000 operations for X and Y axes, Approx. 2,000,000 operations for Z axis.

Mass

3-dimensional coordinate type : Approx. 410g

Potentiometers mounted

- For X and Y axes: SFCP22E, 10kΩ±15%, 0.13W (conductive plastic resistive element), Independent linearity tolerance ±3%, Electrical rotating angle : Approx. 40°, - For Z axis: Special potentiometer RMP30AY is exclusively used for seesaw knob 10kΩ±15%, 0.1W, Independent linearity tolerance ±3%, Electrical rotating angle: Approx. 30°

Output smoothness

＜against input voltage 0.2%

Contact resistance variation

＜5%C.R.V

Resolution

Essentially infinite

Dielectric strength

1 minute at 500V.A.C.

Insulation resistance

＞1000MΩ（500V.D.C）
