Sibo занимается потенциометрами и датчиками уже 30 лет.

WDD35
WDD35

WDD35

1-turn Conductive Plastic POT.

瀏覽量: Вернуться: 2022-12-08

    Характеристики:

  • Conductive plastic

  • Economy version

  • Classical type, various specifications

  • With one couple of precision ball bearings

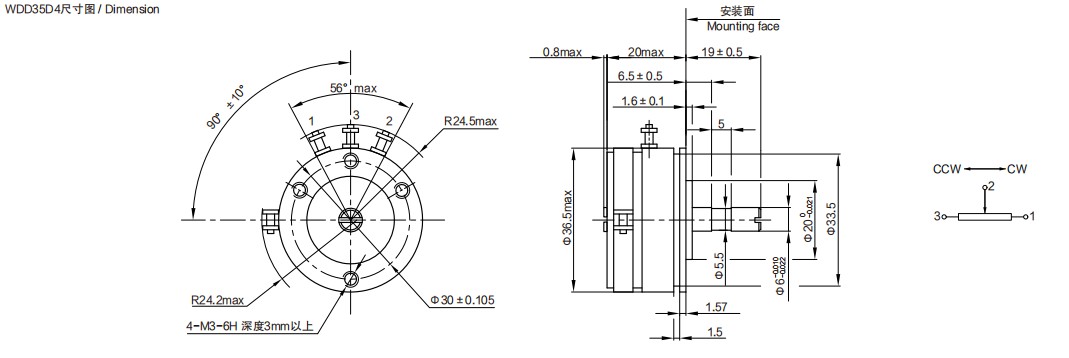

  • Various models are available: WDD35D4, WDD35D1, WDD35S, WDD35D8T

Измерение


Параметр

General Mechanical Specifications

Mechanical angle

360º (Endless)

Protection degree

IP40

Operating torque

<1mN·m

Life expectancy

20,000,000

Mass

Approx.50g

Bearing

With one couple of precision ball bearings

Housing material

Anodized aluminium alloy

Shaft material

Stainless steel

Wiper material

Precious metal multi-finger wiper

Environmental Specifications

Operating temperature range

-55℃~+125℃

Storage temperature range

-55℃~+125℃

Shock

50G 11ms

Vibration

15G/10Hz ~ 2000Hz

General Electrical Specifications

Standard resistance

1K、2K、5K、10K

Resolution

Essentially infinite

Resistance tolerance

±15%

Independent linearity tolerance

±0.1%

Electrical angle

345°±2°

Power rating

2W

Wiper current

μA~1mA(Max.2mA)

Insulation resistance

≥1000MΩ(500V.D.C.)

Dielectric strength

500V.A.C/1 min

Output smoothness

<0.1%against input voltage

Resistance temperature coefficient

±400P.P.M/°C

Special Specifications Available

Special specifications

With stopper(Electrical angle:340°),With return device,Shaft with front and rear extension,Special machining on the shaft,Extra tap,2-ganged,With pointer.
