Protection degree

Housing case IP67；Shaft IP65, Optional IP67

Staring torque

≤50mN·m

Life expectancy

>100,000,000

Mass

Approx.360g

Housing material

Aluminium alloy

Shaft material

Stainless steel

Shaft load

Radial 80N, Axial 40N

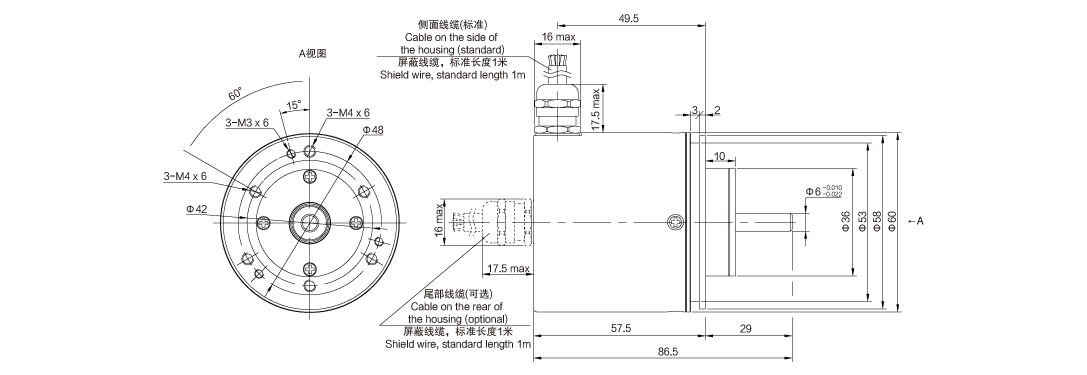

Shaft diameter

φ6/ φ8/ φ10/ φ12

Operating temperature range

-30℃～+105℃

Storage temperature range

-30℃～+105℃

Vibration

100m/s²,55Hz~2000Hz (EN 60068-2-6)

Shock

1000m/s²,6ms (EN 60068-2-27)

ESD durability

Contact discharge ±8KV，Aerial discharge ±15KV，EN61000-4-2:2009

EMS durability

100V/m (80MHz～1GHz，1KHz80% Amplitude modulation)，EN61000-4-3:2006+A1:2010

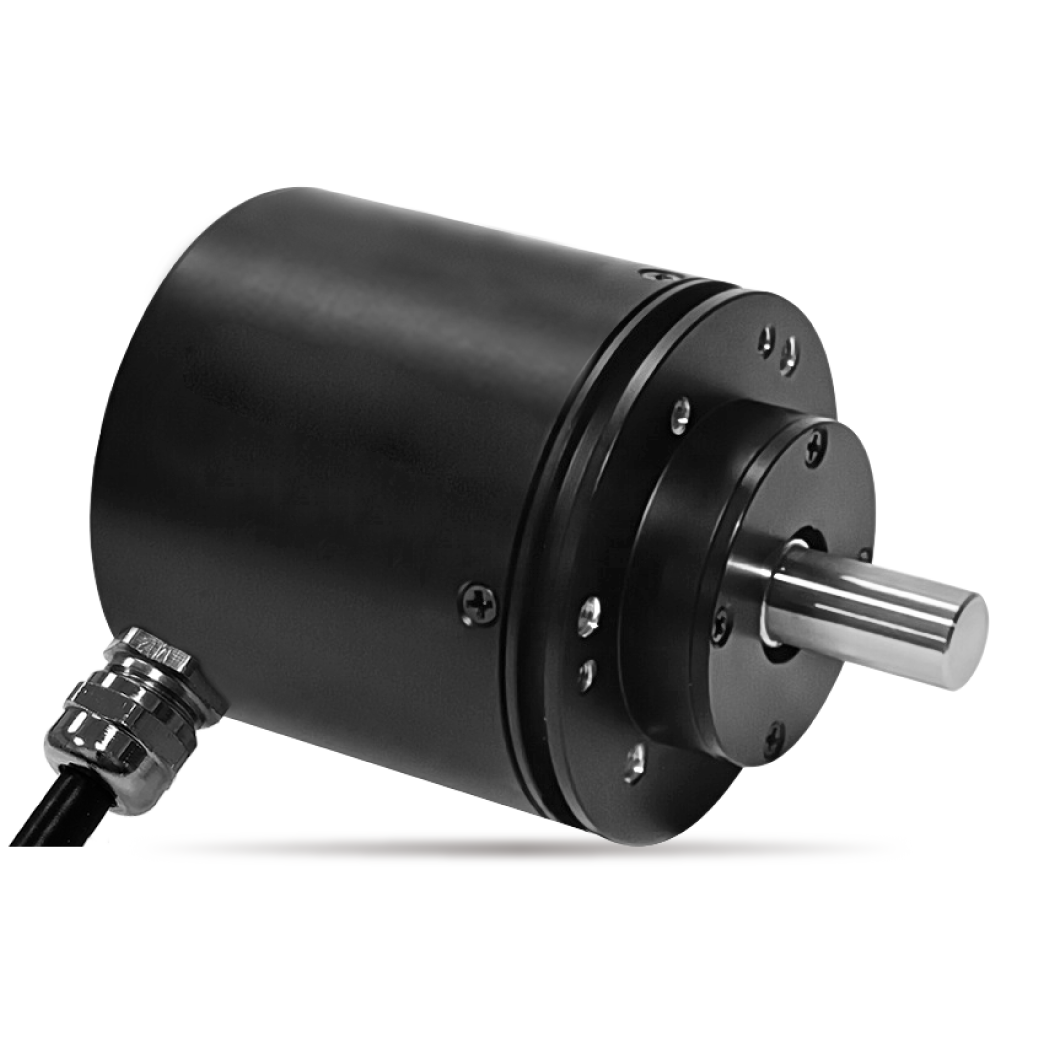

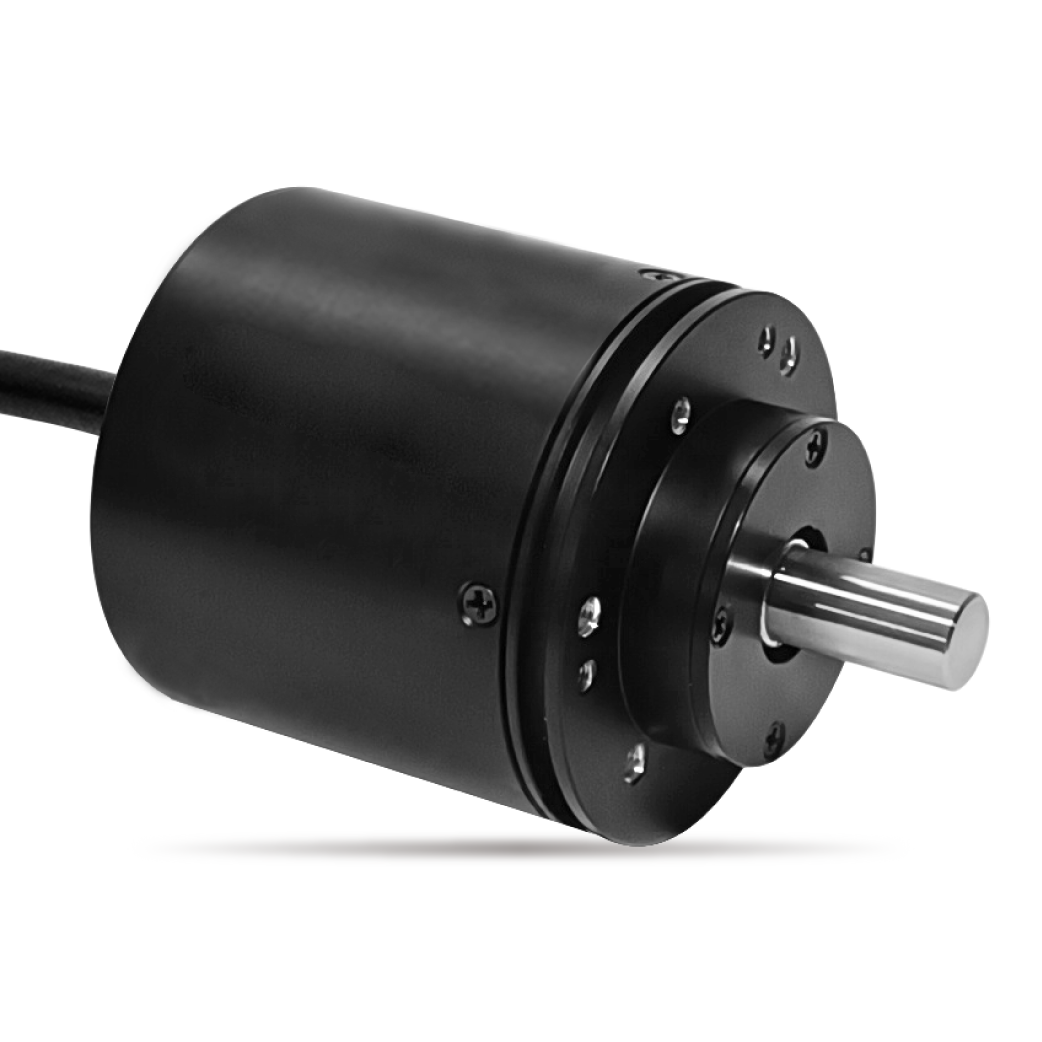

Standard model

EBMD58A-S1-W1212B485

Applied voltage

9V-30V

Current consumption (no-load)

Single turn ≤50mA, multi-turn≤130mA

Single-turn resolution

4096（12Bit）；Max 16384（14Bit）

Multi-turn resolution

4096 (12 Bit)

Protocol

Modbus RTU slave

Baud rate

1200~115200bpscan be set， the default is9600bps

Address

1~200can be set, the default is1

Insulation resistance

> 1000MΩ (500V.D.C)

Dielectric strength

1 min (500V.A.C)

Special shaft

Special length of shaft, special diameter, special machining on shaft (like shaft slotted、fatted etc.) or blind hole

Customized protocol

We can make customized protocol according to customers' requirements.
